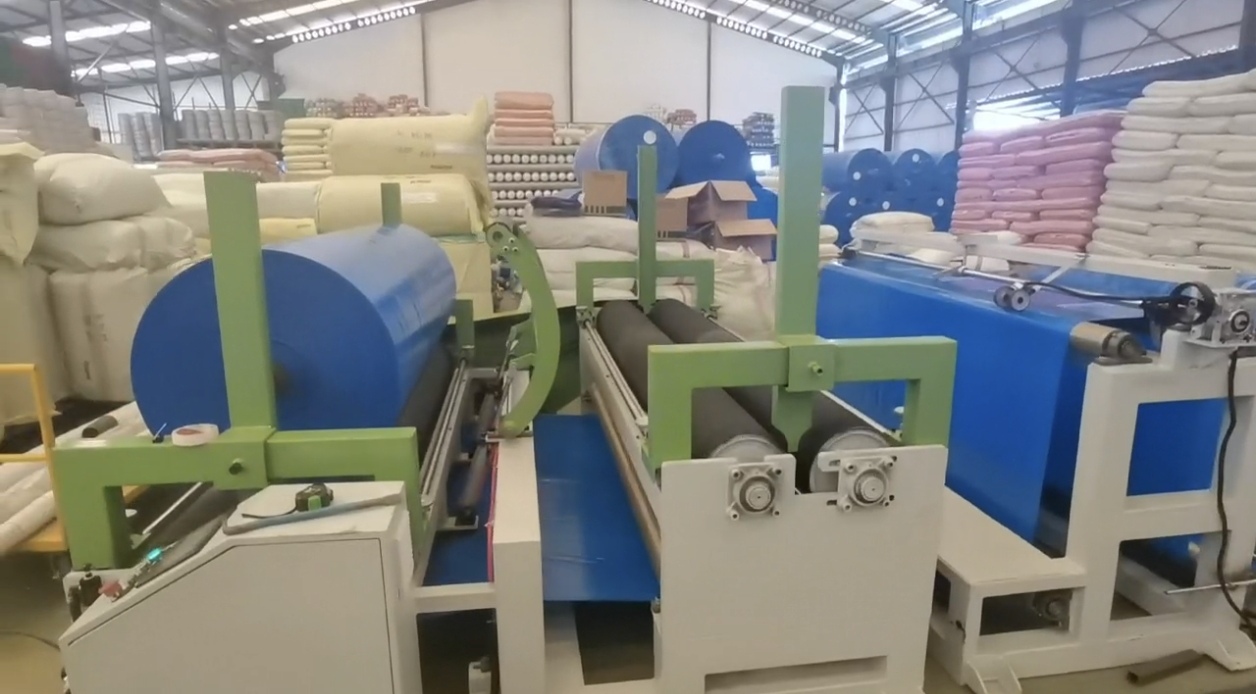

Automatic Roll Rewinding Machine With Slitting

A roll rewinding machine, also known simply as a rewinder, is a essential piece of industrial equipment used to convert large parent rolls of material into smaller, more manageable finished rolls . These machines are fundamental in the converting industry, where materials produced in wide, continuous webs need to be processed for end-users or subsequent manufacturing steps. The materials processed are diverse and include paper (like toilet paper, kraft paper, and newsprint), films (plastic wraps), foils, nonwovens, textiles, and labels .

Primary Purpose and Functions

The core purpose of a rewinding machine is to transform a large, bulky "jumbo" roll into multiple smaller rolls that meet specific customer or operational requirements . This process typically accomplishes three main tasks:

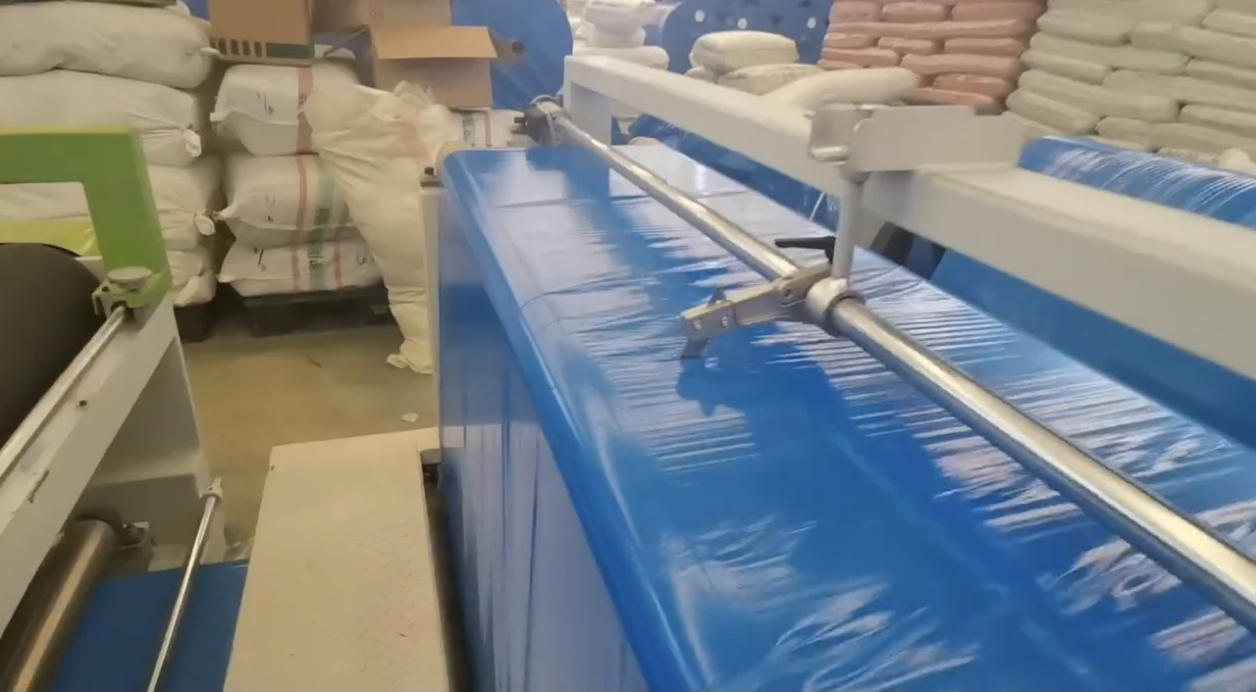

• Slitting and Trimming: The machine trims the uneven edges of the parent roll and can slit the wide web into several narrower rolls simultaneously, ensuring a clean, finished width .

• Inspection and Defect Removal: During the rewinding process, operators can remove any defective parts of the web, such as tears or imperfections, splicing the material back together to create a flawless finished product .

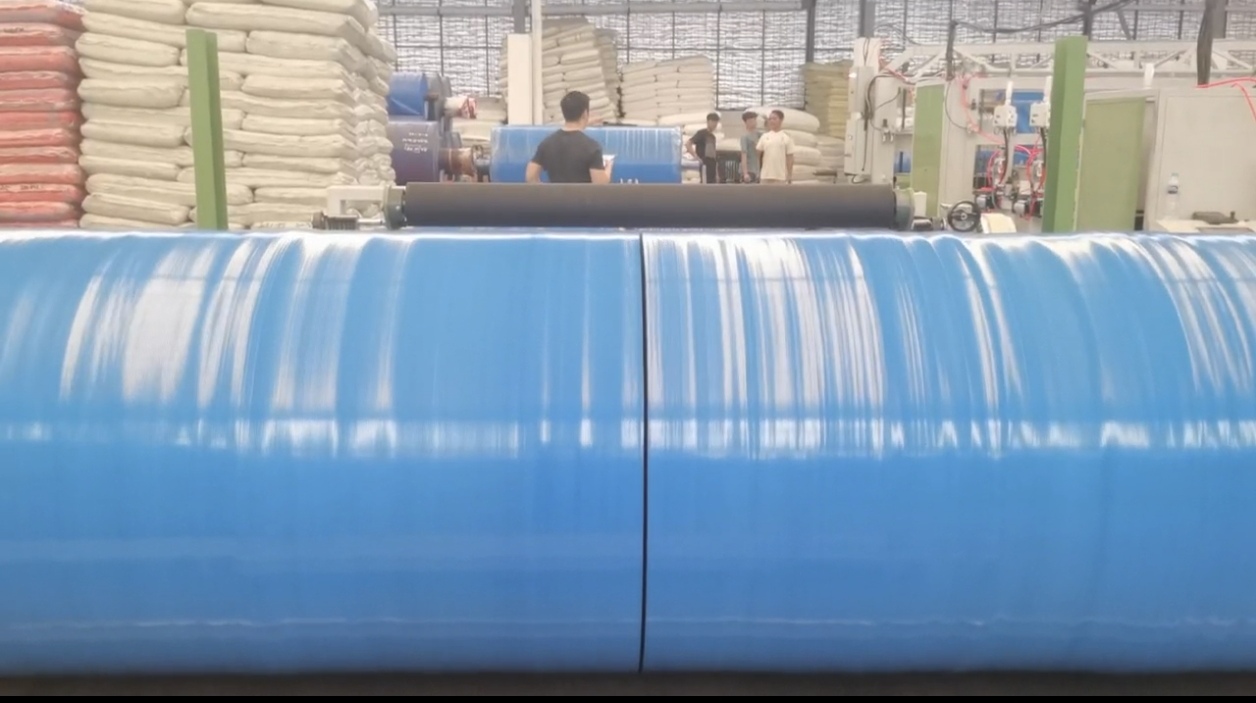

• Controlled Rewinding: The machine rewinds the material onto new cores (cardboard tubes) or can create coreless rolls. It precisely controls the tension and firmness of the wind to ensure the final roll has the correct density and doesn't telescope or unwind easily .




The Rewinding Process

While designs vary, a typical rewinding process involves a few key stages:

1. Unwinding: The large parent roll is mounted on an unwind stand. The material is fed through the machine under controlled tension .

2. Processing: The web of material passes through various stations where it may be slit, perforated (as with toilet paper or kitchen towels), embossed, or glued .

3. Rewinding: The material is then wound onto a new core or former. Modern machines often use advanced control systems like PLCs (Programmable Logic Controllers) and touch-screen interfaces to manage winding speed, length, and tension with high precision . Some high-speed machines use servo drives to ensure the winding is tight and the length is accurate.
