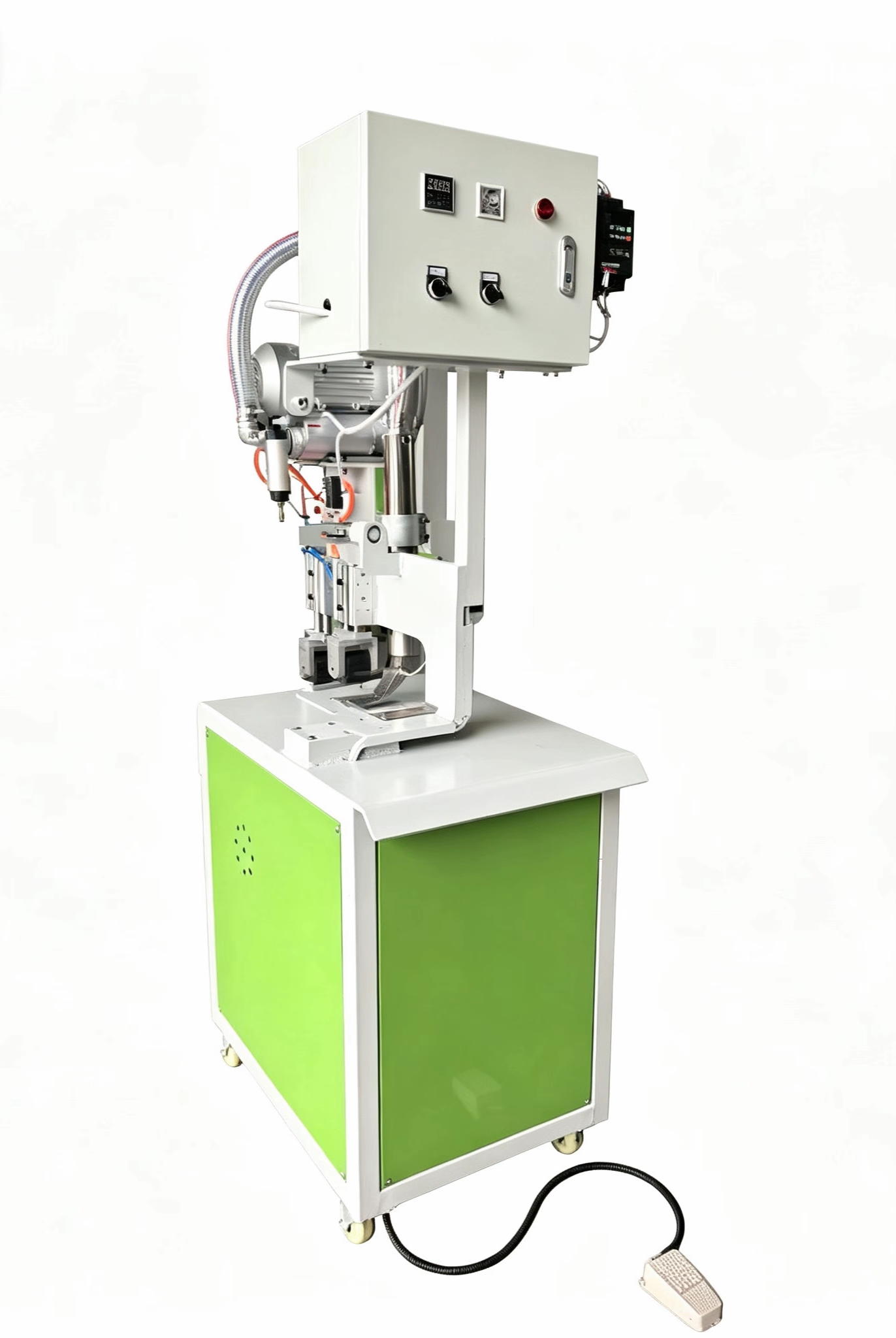

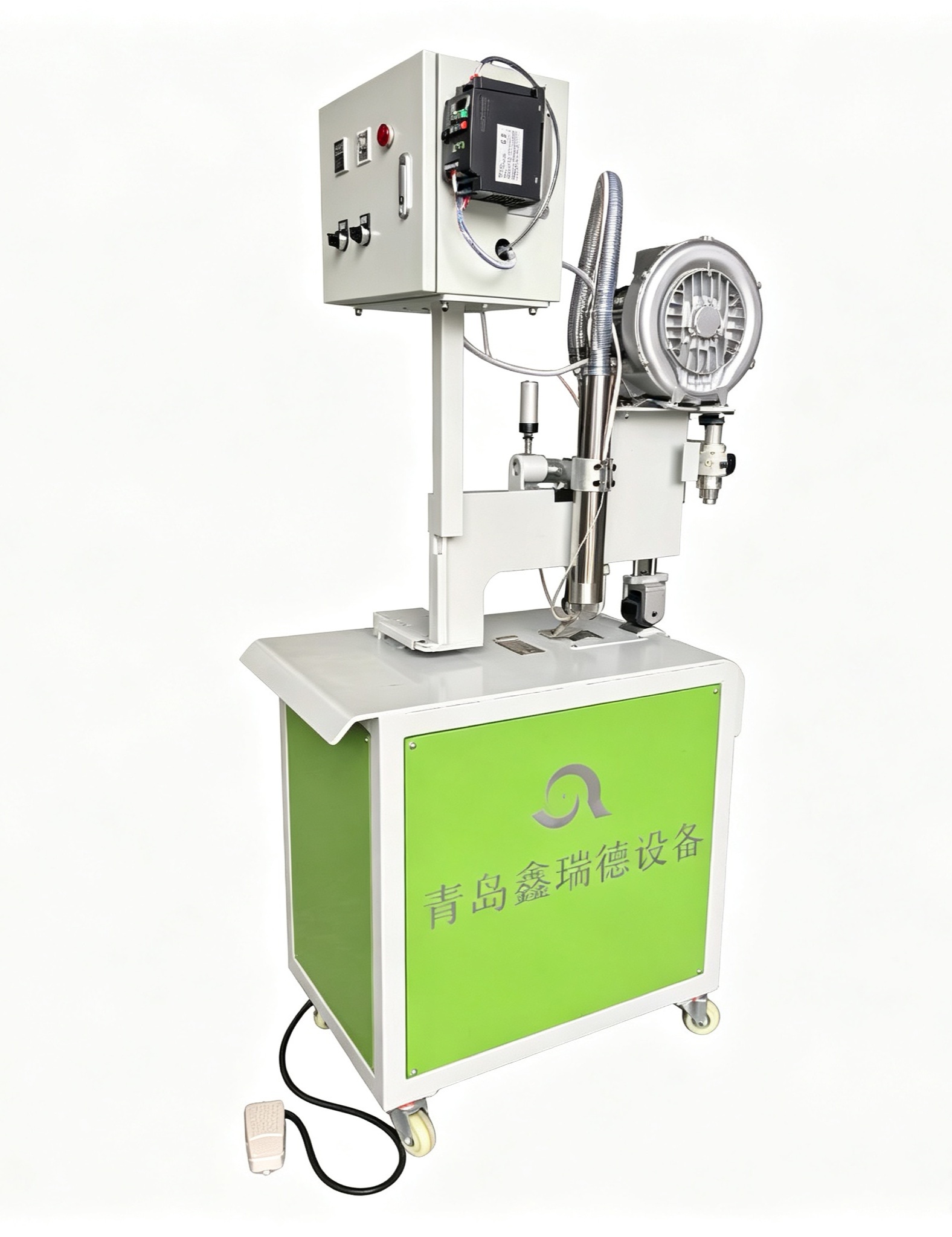

Tarpauin Overlap Welding Machine

A tarpaulin single head welding machine is a specialized industrial device that uses hot air to weld one seam of heavy-duty fabric at a time. It's a popular choice for small to medium-scale production, custom jobs, or on-site repairs due to its flexibility and relatively compact size.

How It Works: The Hot Air Welding Process

The machine operates on the hot air welding principle to create strong, waterproof seals .

1. Intense Heat: A heating element raises air to a very high temperature, typically between 300°C and 700°C .

2. Precise Application: This hot air is directed through a nozzle precisely onto the overlapping edges of the tarpaulin material .

3. Pressure and Bond: A pressure roller immediately follows, pressing the heated layers together. As the material cools, it fuses into a permanent, durable weld .

Core Functions and Applications

Its versatility makes it a valuable machine in tarpaulin fabrication, primarily performing these tasks in a single pass :

• Seam Jointing: Welding two separate pieces of tarpaulin together to create a larger sheet.

• Edge Hemming: Folding and welding the raw edges of the material to create a clean, reinforced finish.

• Rope Insertion: Inserting a rope into the hem during the welding process, which provides a strong point for lashing or hanging
